Building the Head, Sitz Shower Tub, and Installing the Grey Water Tank

I tabbed in a divider in the wardrobe closet. The aft side will be a hanging closet and the forward side will be converted into shelving and a counter top for a small round sink as part of the head "system." With a sitz tub on the port side and a head there was just not enough room for the sink. We discussed installing a folding sink but decided it was not the right answer for us. We needed a permanent sink to support four people. This seemed the best way to meet the requirements. We don't think we need a 30" wide closet. The divider/bulkhead is 1/2" BS 1088 plywood. There is a single layer of 1708 biaxial on each side both top and bottom. I power planed the ends down 1/16" so the biaxial would lay flat with the surface of the plywood to make it easier to apply the staving. I left a space between the back side of the bulkhead and the hull so there would be room to remove the chain-plate which you can just see glassed into the hull and under the edge of the hull-deck joint.
12 Apr 12 (Updated 14 April with additional text and photos). Below are some pictures from the recent work on the sitz shower tub. I have been thinking about how to build the tub for a long time. The difficulty is that if the tub is built small enough to be built outside the boat and passed through the companionway, it would be too small to use. Thus, it has to be built in place. However, because the space is so tight and restricted if I use the stitch-and-glue method I won’t be able to get to the back side of the tub to tape the joints. The tub, though only used for sit down showers and not filled with water like a tub at home, still needs to be stout and water tight. In a perfect world I would be able to remove the tub in-tact if it needed to be repaired or if I need to get to the inside of the hull behind it. But, I don’t see how that’s possible. So, if for any reason I need to get behind the tub, it will need to be cut out with a “saws-all.” The 1”x1” horizontal and vertical Douglass Fir cleats provide a little stand off so air can circulate around the tub and so the bulkheads will be protected if I need cut the tub out.
The tub will be about 33” across the aft end and about 27” across the forward end. It will be about 33 ½” long and about 27” deep from floor to top edge. The inboard side will be vertical while the outboard side will have “chines” and generally conform to the shape of the hull. The tub will be made with 1/2” marine grade mahogany plywood. It will be coated with numerous coats of epoxy inside and out to include the end-grain. The inside corners will have thickened epoxy fillets. There will be a removable teak seat in one end set about 10” above the bottom. There will about 40” of vertical clearance between the top of the tub seat and the overhead. The side of the tub towards the boats centerline, the side you step over to get into it, will be faced with vertical v-groove staving just like the rest of the boat. The top edge will be trimmed in raw teak all the way around. The tub will drain into a grey water tank which will be pumped overboard by my manual bilge pump that will be connected to the tank via a diverter valve. The head and pump up spray bottle will be located in a seat locker in separated compartments each with a hinged teak lid that won't be visible when they are not in use. The “user” will sit perpendicular to the centerline with back to the shower tub and feet oriented towards the centerline. This will provide lots of elbow room. The seat will be nearly 35” long (fore and aft) and about 19" deep (less with the hinged lid up) so it will make a good place to sit when getting dressed when using the forward, in-port, cabin. In a perfect world I would have the head oriented fore-and-aft and I spent several days trying to make that work but there simply was not enough room. The best solution was to piggy-back on open floor space already there – the passage way between the saloon and the forward cabin -- for the “users” feet. That gave us the solution for tub and head size we were looking for.
Updated 13 Apr 12: The first thing to do was to install the horizontal and vertical cleats that will support the tub sides. I used 1" x 1" Doug Fir. I cut them to length and temporarily installed them. Satisfied, I removed them and applied two coats of shellac sanding in between each coat. Shellac is pretty good stuff. It is a great sealer and though not as waterproof as epoxy it is a lot easier to work with. It dries in about 20 minutes and can be sanded in an hour. They will never see standing water and in fact will see very little water if any at all. The nice thing about V-groove staving is it provides drainage for water and allows air to circulate. After installing the cleats I called it a day. The next day it was time to work on the plywood sides of the tub. After considerable measuring and too much contemplation I was ready. I picked up another 4x8 sheet of type I Mahogany marine grade plywood from my supplier and also some more door skin ply which I use for making templates. I ripped the door skin into my standard 1 ½” wide strips. I used my hot glue gun and tin snips to cut the doorskin to the proper lengths and glued them together creating the shape I needed for a proper fit. I removed the pattern and traced them on the plywood. For jig saws and skills saws it is best to make the cuts with the good side of the plywood down since most of the blades for these tools cut on the up stroke and it will leave a cleaner cut on the good side of the wood. It’s not very noticeable when you are cutting with the grain but it makes a big difference when cutting across the grain. Then, I temporarily screwed the plywood in place. Satisfied with the work I moved on to the next step.I wanted to use a good rot resistant wood for the cleats that will support the bottom of the tub. So, I milled some 8/4 Iroko. I had to determine the slope of the bottom of the tub. I decided on four degrees, sloping from the bow to the stern. With that decision made I ripped some Iroko into 1 ¼” x 1 ¼” cleats with a four degree bevel. This will ensure the floor of the tub lays flat against the cleats. With that done, I checked the fit by temporarily securing the Iroko cleats in place with some two sided tape. Satisfied, I drilled holes for quarter inch bolts and temporarily installed them. With the end cleats installed I laid a couple of straight pieces of wood across them and used doorskin and the hot glue gun to build a template for the tub center support. I needed it in place to support the template for the bottom of the tub. I cut the center support from a piece of scrap BS 1088 ½” plywood. I hot glued it into place. Later it will get sealed with many coats of epoxy and glassed in place. Next, I built another doorskin template for the floor of the tub. I placed some ½” blocks on the Iroko cleats to ensure the template measures the widest part of the floor (which in this case is the top). This is essential when the piece to be cut will require a beveled edge. I cut the mahogany ply and then test fit it. I spent a little time shaping it for a better fit with a small low angle block plane and a spoke shave. Later, I will trim the floor back even more but not till I am sure where the outboard vertical sides of the tub will join the floor. With this done I called it a day.
Updated 14 Apr 12: We fiddled around and wasted a lot of time today sorting out how to build the sitz tub outboard side panel. To be honest the sitz tub is kind of small though we can't really be sure till we have the seat mounted in it . . . or build a full size functional mock up and bolt it in place and that is not going to happen. I built two different side mockup panels today. The first one did not have a chine. Just a straight angled panel at about a 50 degree slant. We set up buckets to sit on in the tub and different platforms to vary the height. It was OK. Not great. Then, I built another mock up using only doorskin templates (see latest photo in gallery below) and we liked it better as we gained another 3 inches in width at seat height level. The challenge is the vertical inboard face of the tub which can't be changed if there is to be enough room for the head. The vertical panel has an adverse impact on the usable room in the tub. It cramps up your ability to move around. Well, after staring at the thing for too long, making more sketches, and looking around the boat for any other viable option--there were none--we will start building the chined two-panel option tomorrow.
The template for two "chined" side panels to increase room in the sitz tub.Building the template for the bottom of the tub. Below: 1. This is the space we have to work with. You can see where will glassed in the holes for the through-hulls. The tape marks where the cleats will be located. 2. The 1"x1" Doug Fir cleats in place. 3. The templates for the front and back of the tub. 4. Laying the templates out on the mahogany ply. The good side is down as it leave a cleaner edge during cutting. 5. Plywood sides being test fitted. 6. Hard to see but the cleats or the bottom of the tub are installed. They are 1 1/4" x 1 1/4" Iroko bolted on with 1/4" bolts. The center support is held in place with hot glue. 7. Building the template for the bottom of the tub. 8. To ensure the tempate measures the correct height for the bottom of the tub they are placed on 1/2" blocks sitting on the Iroko cleats. This ensure the template measures the widest part of the tub bottom. The bolts will eventually have washers and the Doug fir countersinks will be plugged. 9. Test fitting the bottom of the sitz tub. 10. The template for two "chined" side panels to increase room in the sitz tub.
The next day I started off by rechecking the temporary cleats I taped in place yesterday. Satisfied that every thing still fit, I took some measurements with a bevel gauge to determine what kind of angle I would need on the permanent Iroko cleats. The angle is necessary to match the tub that isn't square--it gets wider from forward to aft due to the widening of the hull. The angle is 11 degrees. I then all the panels out of the boat and ripped 1"x1" Iroko cleats and then ran them back through the table saw to get the correct bevel. I installed them with 1/4" bolts. It's way over kill given that they will also be epoxied in place but "nothing to strong ever broke" and I can't easily remove the tub if there is a problem . . . so let's not have a problem with it. "P" for plenty as we say when using demolitions in the Marines. Next, I added some additional Douglass Fir cleats to add to the rigidity of the foward and aft panels. Then, I reinstalled the forward and aft panels. I then built templates one at a time to the new cleat system and used them to trace the patterns on what was left of the 1/2" mahogany plywood. When looking for a close fit you get better results if you build each template next to the panel just installed. That way you reduce the chance of a compound error. I used my circle saw to cut the panels from 1/2" mahogany plywood. I cleaned up the edges with a block plane. The panels were a snug fit as I had not cut the bevels to match the 11 degree bevel on the cleats. I cleaned up the edges with my block plane and then used the plane to add the correct bevel checking it with a combination square. I was very satisfied with the final fit. After that is was time to clean up the boat and the shop and call it a day. This week I will start applying epoxy to the panels and cleats and begin the process of "stitch and glue" to connect the panels.
Below: 1. I added additonal cleats to support the bottom of the foward and aft panels. 2. Next, I temporarily attched Iroko cleats. After this picture was taken I trimmed the cleat on the left so there is a gap in the bottom to prevent it from trapping water. 3. This is the template for the upper outboard panel. Note the template was built on top of 1/2" blocks so I don't end up with a panel that is too small. 4. After cutting the panels from the template patterns I used a block plan to clean up the edges and bevel them to match the angle of the foward and aft panels. 5. Creating the chine is a lot more work than a single flat angled panel. But we gained a lot more room.
Yesterday, I wet the edges of the two joints between the horizontal panels and the floor of the tub. I secured them in place with small screws and two spring clamps. Then, I mixed up some epoxy thickened with cabosil and reached underneath to fill the gap between the corners of the outside corner (the inside corners being on the inside of the tub faces toward the center of the boat). I let it sit overnight and then spent time researching a suitable drain. By bonding the panels together using the cleats as a jig, so went my thinking, I could remove them from the boat and they would remain correctly aligned. Then, I could apply biaxial tape to the back of the two seams I can't get to when they are mounte in the boat.
Building a sitz tub, sit down shower, off shore sailboat, sailboat restoration, Cape Dory, Cape Dory 36.The panels slid right out and did not break.
I could not tape to the edge as that part of the panel sits on the Iroko cleats.I was a little concerned I would not be able to remove the panels the joint breaking but I had no problem. They slid right out. I took them into the shop set up a little jig and sanded the outside of the panels. I fully expected to know the panels off the work bench and but the joints at some point. But, luck was with me. No disasters. If filled the remainder of the seams with thickened epoxy. I remove the forward and aft panels from the boat and sanded the outside of them as well. Next, I applied two layers of 17.08 biaxial tape (5" and 4" wide) to the back of the horizontal panels and the floor panel. The rest of the day I spent brushing on three coats of epoxy. Tomorrow, I will work on the cleats in the boat and drill the holes in the bulkhead so air can move around the tub.
The panels slid right out and did not break.
I could not tape to the edge as that part of the panel sits on the Iroko cleats.
Yesterday, I worked on the cleating syste m and replaced the lower horizontal douglas fir cleats with some 1”x1” teak I had on hand. I also angled it down instead of positioned horizontally as I had with the Douglas Fir. I rationalized that if any water got on those lower cleats (and it will eventually) the water would run down and drip off to the fiberglass hull vice sit there on the wood and cause problems. I test fit everything to make sure it was still lined up. Today, I gave a good acetone wipe down to the Iroko and glued them to the edges of the forward and aft panels with thickened epoxy. The tub sits on those cleats. Then, I applied two coats of epoxy to the Iroko, thinning the first coat with a little acetone which helps it penetrate a little better. Adding even five percent acetone by volume weakens the epoxy but since I am using it as a coating the strength is not so important. Next, I used a 1 ¼” hole saw to cut a series of holes in the two bulkheads on the forward and aft sides of the head compartment so air can move around the tub. It is stale air and moisture that causes mildew and rots wood. The air holes are important. I spent some time trying to make them nice and lined up but there was no good way because of the numerous obstacles to content with such as wood plugs (with ss screws buried up them), cleats, dividers on the other side of the bulkheads, etc. So, I did the best I could and cut a total of 12 holes in the two bulkheads. The holes will not be visible as they are all contained within lockers, settees, and under berths. Then, I took my rotozip with a ¼” collet ¼” round over bit and smoothed out the edges of the holes. The round over is not for looks, though it does give the hole a more finished appearance. It keeps the epoxy from “pulling back” from the edge like it will with a 90 degree turn. The same thing happens to paint and varnish. A gentle bend allow the surface of the coating to follow the turn and to remain thicker and provide better protection to the wood underneath.
I have mixed feelings about coating wood other than plywood with epoxy. As my mentor has pointed out, wooden boats have been around a long time without epoxy. There are often other ways. Epoxy is not a be all solution. It is a tool and needs to be used correctly. And, sometimes epoxy and cause problems. If water gets to the wood under the epoxy and the wood can’t breath and dry out it can be worse than if you had just left it uncoated. But there are times when it makes sense. In this case, I can’t get to the area behind the tub. So, I will protect it best as I can. I did, after much thought, decide to leave the teak cleats uncoated. Since they are not attached to the tub, but really serve to wedge it in place I thought any coating might get scraped off over time as the tub moves around a little with the working of the hull and the crew crawling in and out of it. If so, the protective layer could be broken could seep in under the coating. Better to rely on teak’s great resistance to rot aided by the air holes through the bulkheads. Such is my rationalization for the day.
Below: 1. 1 1/4" holes but to allow air to move. There were many obstacles to avoid. 2. The routered holes before the first coat of epoxy is applied. 3. The holes have been routered to round the edges and the first coat of epoxy has been applied. Not the teak strip angled down. 4. A close up of one of the holes. 5. Using the Roto Zip with a round over bit and the small base allowed me to get in close. This base is not stable so you have to be very careful.
I was not satisfied with using the teak as supports behind the forward and aft panels of the tub. Teak is great wood sure, but I knew eventually it would be a problem. It would get musty and it would aggravate me. So, Friday it occurred to me that McMaster Car might have some fiberglass stock I could use. Sure enough, they had hollow, box, 1"x1" fiberglass stock. I ordered two sections of 5' each and it arrived first thing Monday morning. After I ordered the fiberglass I installed a 3/4" Iroko cleat on the outside of the middle panel where the seat cleats will be secured. I needed something thicker than 1/2" ply to secure the cleats to. The teak seat that the occupant will sit on will be supported by the cleat so there will be a fair amount of weight on it. Monday, I cut the 1"x1" fiberglass stock and installed it where the teak was. Problem solved. Next, I glassed in a support under the center of the tub. Today, I took some additional fiberglass 1"x1" stock and epoxied it to the outside of the outboard edge of the top panel as a stiffener. Then, I coated the Iroko I installed yesterday on the outside of the tub and the support that will provide additional support under the tub with two coats of epoxy. I thinned the first coat with acetone to help it better penetrate into the wood. After is was tacky to the touch I applied another coat that was just straight epoxy. I let them cure and this evening I set the panels in place back in the boat.
Below: 1. Another view of the air holes that will be inside of the settee sideboard. 2. Installing the support for the center of the sitz tub. 3. Epoxying in the Iroko cleat to the back of the tub into which screws will be installed for the cleat that support the seat. 4. The 1" x 1" fiberglass stock used as cleat support behind the tub. 5. No more worry about the rotting cleats in the area behind the tub. 6. Using the 1"x1" fiberglass stock to stiff the top outboard edge of the tub.
I used a standard 1 1/4" bar sink drain I bought from Ace Hardware. It is chrome plated brass. I have not used any bedding compound. I will have to pull it out before I glass in the tub with fillets, cloth tape, and several coats of epoxy. After drilling the hole and fitting it for the drain I began to develop the plan for the inboard vertical panel. A/B grade Marine Mahogany only has one good face. You'll be able to see both side of the inboard vertical panel--from outside the tub and inside. We plan to finish it bright so we need to "A" sides. The solution is to make our own A/A panel. I purchased some additional A. Mahogany and while milling the staving to 3/8" (I resawed 4/4 A. Mahogany to get two pieces of 3/8" I also milled some rough planks to 3/4". Then I set the 3/4" aside to work on the quarter berth. Once the quarter berth is finished I'll resaw the 3/4" planks to get two 1/4" pieces from each plank. The plan is to glue them to 1/2" okume to get a very stiff A/A sided panel that will be epoxied and tabbed to the parts already built and installed. If it sounds confusing it will be made clear when we get the pictures of the execution.
Below: 1. A single coat of Interlux Epoxy Prime Kote to eliminate amine blush issues. Probably a wast of time. 2. One coat of Bilge Kote. I left the glass over the chain plate tangs unpainted so I can see them. 3. Making sure everything fits before I begin work on the drain system. 4. A standard 1 1/4" drain assembly from Ace Hardware. I found the 1 1/4" to 1" hose barb at Lowes. 5. I used a 1 1/4" hole saw to drill the holes. I completed the fitting with these tools. 6. I used a standard file and a pattern maker's file to enlarge and shape the hole. 7. I improved the bevel with a chisel till it fit right. 8. I wrapped the shaft of the drain with packing tape and waxed the whole thing. 9. I taped the hole and applied a couple of unthickened coats of epoxy. 10. I troweled on the epoxy thickened with cabo sil and 404 and pressed it into place. Then I cleaned it up and let it cure hoping the drain would come out of the hole. 11. A single coat of Interlux Epoxy Prime Kote to eliminate amine blush issues. Probably a wast of time. 12. One coat of Bilge Kote. I left the glass over the chain plate tangs unpainted so I can see them. 13. Making sure everything fits before I begin work on the drain system.
The next step for the sitz tub was to cut a piece of 1/2" okume ply serve as the core for the vertical panel. Next, I ripped the 3/4" mahogany into narrower planks--less than 6". Next, I stood them on edge and "resawed" them on the table saw. Next, I ran them through the planer and took them down to an even 1/4" thick. I jointed the edges and then back beveled them slightly with a hand plane to the top edges would fit together flush. Then, glued one layer to the okume ply with System Three T88 epoxy, clamped it to a strong back, and let it sit over night. The next day, I unclamped it and applied the mahogany to the other side and reclamped it. Today, I unclamped it, smoothed it with a cabinet scrapper, and sanded it with 120 grit. I checked it for fit. Satisfied, I applied one coat of West Epoxy with 207 clear hardener to what will be the inside surface of the sitz tub and set it aside.
Resawing the 3/4" mahogany to 1/4".
Clamping up the mahogany.
Unclamped, sanded, edges routered smooth.
Test fitting the sitz tup inboard vertical panel.
I had a very helpful phone conversation with Tom Pollock in the technical office at West Systems today. He is a wealth of knowledge and took the time to look at the pictures of my sitz tub while we discussed the best way to glue it up. He agreed that I should epoxy it to the cleats that are installed on the end panels. We discussed the inside fillets and he suggested I should use G-Flex epoxy instead of 105/205. I have used G-Flex before and written a post about it. Though it is a little less strong than 105/205 it is not as brittle. In fact it will elongate 30 percent before it breaks. We discussed the advantages of the fillets being able to flex a little no knowing if there will be any panel deflection due to being tightly fastened between two major bulkheads. He also thought I could eliminate the tape to the inside fillet and also told me that because G Flex gives more than 105/205 it makes up for the strength and in fact "break tests" show it to be just as strong. He advised me to apply a one coat of 105/207 (207 is the clear UV stabilized hardener which I have on hand just for this project) and let it cure. Then install the panels and apply the fillets to the cured coat of epoxy (sanding it first of course). By applying a coat of epoxy to the panels first the thickened G Flex will actually have better adhesion for this kind of application. So, after completing the varnish work on the quarterberth I applied the first coat of epoxy to the panels. I waited for the temperature to start dropping so the condensing air would pull the epoxy into the wood and also eliminate bubbles forming on the surface.
First coat of 105/207 applied to the end panels.
Finally, today I epoxied the sitz tub middle panels to the end pieces. I sanded the single epoxy coat I applied yesterday to the end pieces and the center panels with 120 grit abrasive. I used 80 grit along the edge where the inside fillet will eventually be located. I wet out the cleats and the under side of the center panels with unthickend epoxy. Next, I mixed up 105 and 206 slow hardener with colloidal silica and trowled it onto the cleats on the end pieces. I used a plastic stir stick to create a little bit of a bevel to the thickened epoxy laying on the cleat so that it was neatly beveled to the outside edge. Then, I placed the center panels into position. I had just the right amount of squeeze out and the panel sat perfectly in position. I installed three # 8 screws that I had previously drilled to keep the panels in position and apply a little pressure to the cleats. I clamped the bottom inboard edge of the panel with two spring clamps. Next, I mixed up a little System Three T88 (the same epoxy I use on the staving) and epoxied two more cleats to the bottom inboard edge of the lower panel. This will give me cleats on the bottom of the tub to screw the inboard vertical panel into when it is time for it to be installed (tomorrow?). I wiped up excess epoxy with a stir stick and cleaned everything up with an acetone dampened paper towel. Then, I installed three mahogany wood plugs over the screws heads.
Stiz tub epoxied into position. The rest of the tub is sanded with 120 grit abrasives.
Today we installed the last panel on the sitz tub. The first step was to remove the clamps from yesterdays work. Then I scrubbed the edges down with a little water and a 3M scrub pad to make sure I removed any amine blush from the 105/206 resin/hardener I used yesterday to install the middle section panels. I wiped it dry with plain white paper towels. I also sanded the inside surface of the inboard vertical panel with a finish sander and 120 grit abrasive. I had previously applied one coat of 105/207 clear UV hardener. I made one more round of sanding the edges where the fillets would be applied with 80 grit abrasives. I temporarily installed the panel so all the holes and countersinks would be completed before I epoxy glued the panel in position. Then, I prepared all the supplies I would need in the boat. I vacuumed all the surfaces and performed one last acetone wipe down.
We added mahogany wood flour to the epoxy tfillets o help them blend in better. The tub is sanded so it looks much lighter than it will when it is varnished.
Once we were ready, Gayle mixed the G/Flex epoxy with colloidal silica and a little mahogany wood flour till the color looked about right. I previously sifted the wood dust through several strainers so that it would be flow on smoothly. With out the wood flour the fillets would be a light creamy yellow due to the color of the G/Flex and the silica thickener. We trowled the mixutre into a 75cc syringe and I laid a bead along the joint and then used a rounded plastic stir stick to make the fillets. She continued to mix epoxy and load the syringe while I focused on making the fillets. This saved a great deal of time with the curing clock running . . . tick, tick, tick. After applying the fillets to the back panel vertical and horizontal joints we stopped while I installed the vertical inboard panel. I started the fillets with it removed so I had better access to the tub surfaces. With all the holes predrilled it took less than five minutes to install. We quickly mixed up some 105/206 with colloidal silica and applied it at the bottom of the panel and the Iroko cleats I installed yesterday to ensure there could be no gaps between the two. I screwed the panel on and removed the squeeze out. Then, we applied the final fillets. After that I cleaned up the edges around the fillets as required and policed up the area. That completed the day. I am very happy to have the installation of the sitz tub behind me. Tomorrow I will remove any amine blush, sand the fillets till I am satisfied with them, and then lay on two finishing coats of 105/207. The outside of the vertical panel--the part you can see from the centerline of the boat--will be varnished. The edges will eventually be trimmed with bare teak and ash ceiling will hide the hull.
The next day I applied two more coats of epoxy to the interior surface of the sitz tub. I started off by scrubbing the fillets with some water and a maroon 3M scrub pad to remove any amine blush. I wiped it dry with paper towel and let it sit to further dry while I gathered the supplies I needed to brush on the epoxy. Then, I ran some personal errands and ate lunch. After lunch I sanded the fillets with 120 grit which took about an hour. I vacuumed the dust and performed a final acetone wipe. It was time to epoxy. I mixed up some West Systems 105 resin with 207 clear hardener. This is the same hardener they recommend for use when building kayaks and you are going to finish them bright. It is formulated so it does not produce amine blush. I applied the epoxy with a short bristled 3" "chip" brush that cost about $1.25 at Lowes. I tipped with a 3" Jen Poly foam brush that I bought from Jamestown Distributors--36 brushes for $9.00. I applied two coats over about four hours from start to finish. I am not sure if I will leave it as is or if I will eventually apply two part polyurethane. I'll see how it looks tomorrow. I need to get a couple of coat of varnish on the inboard side of the tub's vertical panel and apply a couple more coats of varnish to the quarter sea-berth vertical panel. I may work on the deck hatches after that or go straight to the ice box. I'll think about it some more tomorrow while I'm varnishing.
The second and third coat of epoxy applied. The fillets are a little darker than the mahogany but not bad. The black marker lines on the doug fir cleats show me where the screws are located. All that will be covered with bare teack trim.
After completing the design work for the toilet box and spray bottle compartment, I cut the corresponsding panels and test fit them. Next, I attached the mahogany staving per my normal technique (click here for more info on staving). I milled the cleats from teak and iroko off-cuts. Then, I drilled the countersinks and installed the plugs after the photos were taken. The basic lay out is the sit down shower tub (sitz) is outboard. Inboard are the shorter compartment box for the toilet (forward) and the taller compartment for the storage of the two gallon pump up sprayer.
Both compartments will have teak lids. The toilet box will have two integrated hinged lids--the first lid is the one with the hole for the . . . well . . . you know. Then, hinged on top of it is a flat lid that serves as a regular seat in the down position. You step on the seat to climb into the tub, or you can sit on it to put on your sea boots, etc. The taller box holds the pump up sprayer, so you never have to remove the sprayer to use it. The 20 gallon shower tank is located in the port cockpit locker on a shelf. The bottom of it is about 12" higher than the spray bottle. The tank will be plumbed to the compartment with the spray bottle using gravity to work. There will be a short length of hose in the compartment with a plastic ball valve. When you want to take a shower you simply lift the lid to the compartment, unscrew the pump, turn the ball vale to the "flow" position and put water in the bottle, add hot water from a tea kettle (which can be heated on the refleks heater, if its running, or the stove), screw the pump back into the bottle, pump a few strokes and you are ready for a hot shower. The shower tank is separate so there is no worry about using too much water and then running out of drinking water. Because the water is metered by the spray bottle capacity we will know how much water we are using.
rill the Hole AlreadyIt's been six days since my last post and I have worked hard on the Far Reach everyday but with little to show for my efforts--thus no posts. This is the most frustrating kind of work. Sometimes, it just takes a lot of effort to move forward a little bit. But, you can either give up, slap something together and hope it works, or keep methodically working the problem. I naturally drift to the latter but it is not without its own set of problems. This is a dilemma everyone that takes on a project like this faces. Time, money, skill, attitude, and significance of the project all come in to play. There is no one solution that will work for every project and person. There are folks that are impatient and will just slap something together and press on. On the other hand there are folks for whom perfection is the only acceptable outcome. Though I have never tried for perfection, I would be forever disappointed with the results of I did, I do want to do a good job. I don't want to do over what I did not have time to do right the first time. On the other hand, I firmly believe that perfection is the enemy of good enough. So, I just have to come to a solution that I feel good about and then proceed.
How can one little hole take so much work?
The challenge was I needed to solve how the sitz tub would be plumed before I put the last panels in place in the head. Before I could commit to the plan I needed to order the grey water tank . . . and to order the tank I needed make sure the plumbing plan I developed would work. So, I started working through the options. This meant multiple trips to Lowe's, visits to our local chandlery, etc looking for parts, measuring components, drawing the plans out so I could visulaize them, yada yada yada. I originally thought the grey water tank would be located under the sole in the head. That way, the sink and the tub could both drain easily to the tank. But, I would have to route the 1 1/2"bilge pump hose and the icebox drain hose forward to the tank. There were some problems with that plan. Also, to remove the tank I would have to disassemble the head . . . not good. So, why not move the tank aft under the sole near the bottom of the companionway? That meant I needed to make a mock up of the tank and draw the location of the fittings on the tank top. Next, I needed to actually run the drain lines from the tub aft to the new location of the tank. The lines needed to gently slope down and aft for the water to drain. This meant I would have to drill the hole for the the hose through the tabbing at the bottom of the bulkhead and I was reluctant to drill 1 3/4" holes through the tabbing (I needed a hole big enough for the chafe protection) bulkheads, and staving without putting forth some thought. I looked, I measured, I drew some diagrams. I bought the Y-Diverter Valve and made sure it would fit in the location I had chosen. I bought some flexible hose. I was concerned it may not be the best choice. I bought some 1" PVC pipe to try out. I installed the drain in the sitz tub with brown Life Caulk. I procrastinated. In the mean time I varnished the head panels and the ply top to the ice box. Finally, I thought this is enough. Just drill the damn holes. So, I did. Four of them. It worked fine. I'll post pictures of the entire set up when the grey water tank arrives and I start installing the components.
Today, I installed the teak trim around the sitz tub. Tomorrow, we will install the cleats for the seat, glue up the seat, and cut and install the ash ceiling. I cut dados for all the trim so it fits down over the inside edge of the tub. The V-grooves will act as drain holes and for air circulation.
In order to install the front vertical face (mahogany staving) under the head sink I needed to install the mahogany plywood that will cover the last of the exposed fiberglass hull. I cut and epoxy coated those two sections months ago. But, to install the plywood I needed to make some brackets to hold them in place and also I needed to paint the hull below the cabin sole in the forward compartment. After fiddling around with the right set up I epoxied in the cleat system. I test fit the panels and the temporary cabin sole then it was time for hull prep work. I sanded the exposed fiberglass with 80 grit paper, vacuumed, wiped it down with acetone. I taped off the mahogany trim and then brushed on grey Interlux Bilge-Kote. What a difference it made. With that out of the way I can install the staving under the sink.
Freshly painted without the plywood panels in place.
Epoxy coated plywood in place.
Temporary cabin sole in place. The vertical panel with the mahogany V groove panel will fit just forward of the short panel at the bottom of the wardrobe to the right in the picture above.
After applying six coats of varnish to the lower cabinet face that fits under the head sink, I installed it. I decided to match the same face that is part of the closet just aft of the sink. It is removable to gain better access under the sink. There is a little storage under the sink but not a lot due to the slope of the hull. I'll install some cleats for shelving.
Completing the trim on around the sitz tub took some time and a lot of head scratching. I installed the ash ceiling about six weeks ago but had not installed the vertical mahogany trim along the outboard edge of the staving nor had I determined how I would cover the horizontal steel flange to which the pad-eye chain plates are through bolted. The steel flange is about 30" long "L" shaped with the flat side glassed in under in the inward turning deck flange with the vertical part projecting downward about 2" and about 2" inboard of the hull itself. It is an awkward shape with lots of different angles. As I often do when faced with a project that does not offer a clear solution, I moved on to something else while I continued to think about and consider various options. Nonetheless, the time had come where I needed to complete the trim. I made the vertical trim along the staving out of African Mahogany which matches the staving. Next, I made a box to cover the steel flange out of solid mahogany milling the horizontal piece, which you can't see in the photo, to 1/4" thick. I cut a dado in the vertical part of the box into which I inserted the 1/4" piece into the slot--this covered the flange from view when looking up while seated in the tub. I measured all the dimensions, cut accordingly, and test fit. It was very satisfied. Then, I glued up the two pieces and installed them with bronze screws. I will remove all the trim later for varnish work but for now I consider it complete. The "box," as well as the ceiling, removes easily and allows inspection of the chain plate nuts and bolts, etc.
The trim behind and above the sitz tub is complete though varnish is still required.
A couple of weeks ago we removed all the trim in the Far Reach that we had not yet varnished--phase III varnishing. Included in the latest round were the winch pads, raised panels for the cabinet doors that fit in the face of the forward double berth, some quarter berth trim, and a bunch of trim around the sitz tub. So, after six coats of varnish applied I reinstalled the sitz tub trim. Before I installed it, however, I fabricated a double layer of "Reflectix" for additional insulation.
I removed the trim around the back side of the sitz tub for varnishing.
I installed a double layer of reflectix insulation (I did not have enough room for a center layer of 1/4" closed cell).
Then, I reinstalled the trim with oval head bronze screws.
The plumbing for the sitz tub is 95 percent complete. Over the last couple of days I drilled the holes for the water line from the dedicate 20 gallon sitz tub water tank (located in the port cockpit locker) to the sitz tub. I drilled holes through the required bulkheads and then coated the edge grain with several coats of epoxy. I drilled the holes large enough to accommodate chafing guards (larger diameter hose) so the water line will be protected from chafe and abrasion. I routed the line and secured the hose over the hose barbs--one at the tank end and the other on a ball valve. The pvc ball valve is locate on a hose in the compartment that contains a pump up spray bottle. The hose extend and retracts like the ones in a house hold sink. The idea is the gravity fed tank will allow filling of the spray bottle via the ball valve. Hot water is added from the stove, via a tea kettle, and the bottle is pumped up and the shower is taken. The water drains to a grey water tank which is pumped overboard via the primary Edson bronze bilge pump through a selector "Y" valve. Simple. I still need to install hose clamps.
The 20 gallon dedicated shower tank locatedin the port cockpit locker. It has an on-deck fill.
The tank is gravity fed thourgh a ball valve and 1/2" hose that passes through bulkheads protected by chafing guards.
The water hose terminates in the same compartment that contains the pump up spray bottle. You can see the ball valve in the top of the compartment. The hose extends as needed. The spray bottle remains in the compartment.
The pump up spary bottle is to the left, the toilet to the right, sitz tub behind. I still need to add the trim and install the seat for the tub.
The next task was to mill and install the teak seat in the sitz tub. It's a classic example of something with asymmetric angles being more difficult than if it were symmetrical and more rectangular. Anyway, I installed teak cleats and the seat. I still need to install a couple of small brackets to hold the seat in place so it can't slide off yet still be easily lifted up and flipped over to dry. The grey water tank arrived today and it will be installed under the cabin sole at the bottom of the companionway just forward of the landing for the ladder. The head sink, sitz tub and ice box will drain into the grey water tank.


The teak seat is installedin the sitz tub.
The grey water tank for the head sink, sitz tub, icebox waste water.
The primary effort for the last week or so has been to install the grey water tank and the Y valve that allows the Edson model 117 manual bilge pump to pull water from either the grey water tank or the bilge sump. I had the grey water tank built by Dura-Weld who also made the four water tanks we installed aboard the Far Reach. I tried to keep the grey water tank design as simple possible since it did not have to be very large. It's 10"x10"x18" and holds about 6.5 gallons. Grey water from the sitz tub, the forward head sink, and the icebox drain into the tank. The tank is pumped overboard by the Edson manual pump. The tank needed to be installed below the cabin sole between the galley sink cabinet and the chart table/icebox. I wanted to install the tank in such a way that I would be able to see the bilge sump, there would be clear access for the bilge pump hose to reach the sump, and I could clear the hose easily if it were to become fouled with debris. I wanted the components of the tank's support bracket near the sump to be made of fiberglass so any inadvertent flooding would not make contact with wood (especially plywood) parts. I had some scrap fiberglass parts that I was able to repurpose for this project. I split some rectangular tubing into L shaped brackets on my table saw and secured them in place with thickened epoxy and biaxial tape about 8" above the bilge sump. Next, I made a template and used it to cut a shelf from 1/4" fiberglass flat sheet stock I had left over from another project. I epoxied on some "L" shaped pieces of fiberglass to the shelf to hold the bottom edge of the tank in place. Then, I epoxied into the hull plywood "knees" or brackets to which I could bolt the tank sleeve to. Next I made a tank sleeve from 1/2" BS 1088 scrap and use the stitch and glue method to bond the parts together. I dado'ed some slots and used fasteners and epoxy to secure "wings" to the sleeves that I could bolt to the knees I previously epoxied to the hull. Once everything was cured, I test fit and then drilled two holes through the wings and knees and installed 1/4" bolts with nylon lock nuts to hold the sleeve in place. The grey water tank was installed. Photo gallery below.
Below: 1. I used an old table saw blade for cutting fiberglass.2. I ripped some scrap fiberglas tubs into L shaped brackets.3. I secured the brackets about 8" above the sump with epoxy and biaxial tape.4. I made a shelf from scrap 1/4" thick fiberglass sheet stock. I epoxied brackets to the base to hold the base of the tank in place. The epoxy filets match bevels on the corners of the tank. 5. I drilled holes in the shelf to allow it to drain water and attached the shelf to the support brackets with ss fasteners. 6. Next, I test fit the tank. The "T" fitting drains both the sitz tub and the head sink drian hoses. The two small hose barbs are for a vent and the icebox drain. The large hose barb is a pick up the will run to the bilge pump Y valve.7. I used the stitch and glue method to bond the BS 1088 plywood parts togehter.8. I epoxied and fastened wings to the sleeves that I bolted to brackets I previously epoxied to the hull.
After installing the grey water tank I needed to install the Jabsco "Y" diverter valve. I picked this particular valve for two reasons: 1) it has adjustable intake hose barbs--they swivel, and 2) it was top rated by Practical Sailor. As mentioned previously, the Y valve allows the Edson manual bilge pump to be used either to pump out the grey water tank or the bilge sump. The question that needed to be addressed was where the valve should be located. I had waffled back and fourth between installing the valve under the starboard watch seat or under the cabin sole. I finally decided to install it under the watch seat as it would be much easier to access and because the hose ran through the locker any way. However, to align properly with the intake hose barb on the manual pump and the exit holes on the front of the watch seat locker the pump would need to be installed in such a way that it would be tilted down--this is where the swivelling hose barbs on the Y valve come in handy. To do that I used the scrap center hole ( about 3" thick and about 4" across) I cut out of the trim for the Refleks heater flue. I cut a bevel on this pad of wood and epoxied it to the hull on the bottom of the locker. Next I cut a larger diameter cirlce from 3/4" cut-off of African mahogany large enough to fit the base of the valve. I dilled holes for three 1/4" bolts and epoxied them in place. I then screwed the base to the beveled pad I had already epoxied to the hull and installed the valve on the base. It's a nice fit and I can remove it for maintenance if required. I temporarily installed the hoses and left them a little long till I am ready to cut them to fit. I'll also need to install chafe guards. But, this project is essentially complete. Photo gallery below.

Below: 1. The pad is cut with a bevel so it's tilted forward about 30 degrees. 2. The pad is secured to the hull with thickened epoxy and biaxial. 3. This is a larger "disk" pad I screwed to the bottom pad. I epoxied the bolts to the base so they would not "spin" when I tightened the nuts. 4. The Y valve is bolted to the base which is in turn scrwed to the pad that is epoxied to the hull. I can remove these parts for maintenance, adjustment, or replacement as required. 5. I temporarily attached the hoses to the Y diverter valve and the bilge pump. 6. The Y diverter valve is located beneath the watch seat. It is quick and easy to access the valve and selct for pumping the grey water tank or the bilge. 7. I temporarily ran the hose but left them long. I will cut to the final length soon.
I needed to install some brackets in the bilge to hold the bilge hose securely in place. I made them from scrap teak. I used a hole-saw to cut the hole about the same diameter as the OD of the hose and then used a cabinet makers rasp to enlarge it so the hose can be withdrawn without a lot of fussing. I had to make the upper bracket "U" shaped and left the "ears" to wrap around the hose slightly so the hose has to be popped in. If I left it as an enclosed hole then I couldn't pull the hose out of the upper bracket because the standing end turned tightly under the icebox and the hose jams up before it clears the upper bracket. The "U" shape allows it to be popped out. The lower bracket is epoxied and screwed to the divider panel that sits just aft of the sump. With the upper part of the hose popped out of the "U" shaped bracket the there is enough slack to pull the lower hose up and out of the bottom bracket when necessary.
I glassed into the anchor storage locker some brackets to secure the 70 lb Luke and spare 35 lb CQR anchors in place. I completed painting of the support box I made for the grey water tank and painted the remaining bilge areas with Interlux Bilge-Kote grey paint. I have not cut the hoses to length; they are just pushed over the edge of the hose barbs for now.
I painted the grey water tank support box with interlux grey Bilge-Kote paint. I forgot to pull the bigle dividers and seal the edges with epoxy. It's on my list to fix.
Looking aft under the old engine compartment. I glassed in brackets to hold a couple of the back up anchor in place in the bilge and then painted the remaining bilge areas.

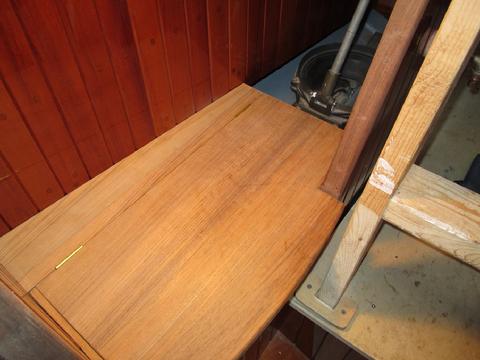

It was time to install the cabin sole under the box where the WC will sit in the head compartment. I made a pattern for the sole with doorskin ply and a hot glue gun. I had enough plantation teak for this project. I had previously milled the plank to 3/4" thick. So, all I had to do was joint the edges and cut a blind 1/4" slot in the edge of the plank to receive a spline. I cut the splines a little thin so there would be room for epoxy adhesive. Because teak can be a little fussy to laminate I thought the splines would give the joint a little more strength. I could have used resorcinol but choice to go with System Three T 88 epoxy for this project since the teak will be on the interior, will not be exposed to saltwater, and will be varnished. I cut the spines for a blind slot (they don't protrude beyond the end of the planks and remain invisible). Resorcinol and Tightbond require significant clamping pressure but epoxy is the opposite as you don't want to starve the joint--very light clamping is all that is required. After test fitting the planks and splines, I mixed up the epoxy, applied it, and clamped up the planks. I used a West Systems plastic wedge stir stick to scrape up the epoxy squeeze out. I left it overnight to cure. The next day, I unclamped the planks and hit both sides with a belt sander--working a figure eight pattern--then followed that with a cabinet scraper to remove any machine marks. I laid the doorskin pattern on the planks, traced it will a pencil, used my table saw with a cross cut sled, a jig saw, and a block plane to get the proper fit. I lightly bevel cut the planks on the ends so they would drop into place. It was a very good fit on the first try. The outboard edge had to be beveled to match the angle of the hull but it was simple to achieve with a bevel gauge and a block plane. These planks will eventually be varnished though they could be left bare. I have used plantation teak before. I had originally thought I would use more on the Far Reach but I don't like the color and it is not as straight grained as Burma Teak. Of course, it cost about a third as much. It smells like teak and has an oily feel but its not as oily or pungent as teak--it smells more earthy than Burma Teak. The growth rings, at least on the plantation teak I have used, are not as tight as Burma teak. Anyway, I have used it for the interior framing around the opening of the icebox and places like that on the interior of the boat where it is not going to be very visible. It's good stuff but not as good as Burma teak. Just saying . . . .
I cut 1/4" thick by 3/4" wide blind splines to strengthen and aling the teak planks.
Clamping was simple due to the use of System Three T 88 Epoxy. Epoxy requires minimal clamp pressure.
I made a pattern from doorskin ply strips and a hot glue gun, Then, I traced the pattern on the planks, cut, and installed.

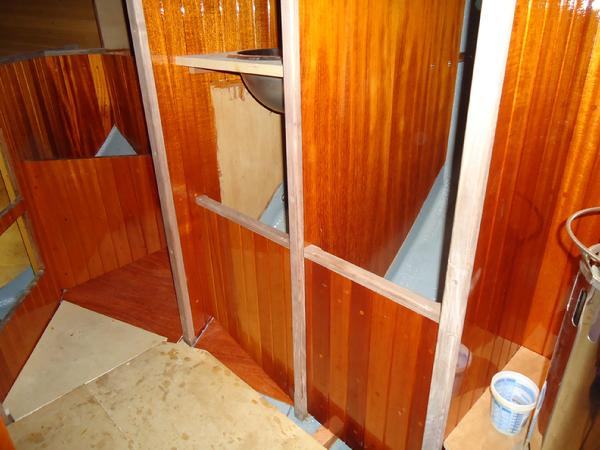

I took a couple of hours over two days and build shelves in the bottom of the head sink cabinet and in the closet. I used some scrap mahogany for cleats and scrap juniper for the shelves. I had to accommodate for the drain and water lines so that took some planning. Having a flat surface in the bottom of these two sloping lockers provides a better surface for organized storage. Both shelves easily lift up using 7/8" diameter finger holes. And, small items can still be stored under the shelves. I measured the slope of the hull, dialed that number into the compound miter saw, and cut small sections of Douglass fir to use as "nub" cleats along the hull. I abraded the hull in the required area with some 40 grit abrasive paper making sure to remove the paint. I vacuumed and cleaned it up with some acetone. Then, I applied some unthickend epoxy to the wood "nub" as well as the hull and followed it with some epoxy thickened with cab-o-sil making fillets all around. I used the laser level to make sure everything was lined up. The shelves fit perfectly.
Below: 1. I used a laser level to get a precise fit for the outboard support cleats.2. The shelf is split into two parts to fit around the drain line. This aloow quick access to the locker bottom. A finger hole make the self easy to remove.3. I built a similar shelf for the bottom of the closet.4. Just a little trim work for the top of the closet. I will varnish it later.
