31 Dec 11I spent most of day on the road so I did not get to the boat till late in the afternoon. With the little time I had I marked and cut the toe kick under the galley sink cabinet. The original cabinet base did not have a toe-kick. I think a toe-kick under any cabinet, boat or home, is essential. It allows you to get your body close to the counter top and keep your center of balance without having to strain your back. It's not hard to make so I don't know why they are not standard on every boat. I also lowered the top edge of the right vertical panel of the sink cabinet. Lowering it makes it look a little less boxy. It also makes a "revel" with the back top edge. By that I mean that you intentionally off set the edge height since it can be very difficult making the corner trims match exactly. It is visually better to have them obviously off-set then very close but not perfect. I made a template and cut a piece of 1/4" ply for a template for the counter top for the sink cabinet to see how everything lined up. We discussed the location of the galley sink--centered in the cabinet or off set to the right so it is centered where you stand just to the right of the sloping hull. I think off-set may be best. I'll decide tomorrow or Monday. No boat work tomorrow . . . or at least very little.
.jpg)
Cut the toe-kick, lowered the top edge of the right side panel, and fit a counter top mock-up.
30 Dec 11Yesterday, I applied three coats of West Epoxy with 207 hardener to the plywood panel that will cover the hull in the galley area, which you can see in the photo. It was the first time I have used 207 hardener, which has some UV protection and is a low blush formula. I wanted to make sure there were no bubbles in the surface so I used a technique the West Systems tech rep recommended. After rolling the epoxy on, I tipped it out with a foam brush. Then I lit off a small propane torch and ran the tip of the flame across the surface back and fourth very quickly. I was instructed to cover a foot or 18" every second. Just a single pass every inch in width after each coat. It worked well.

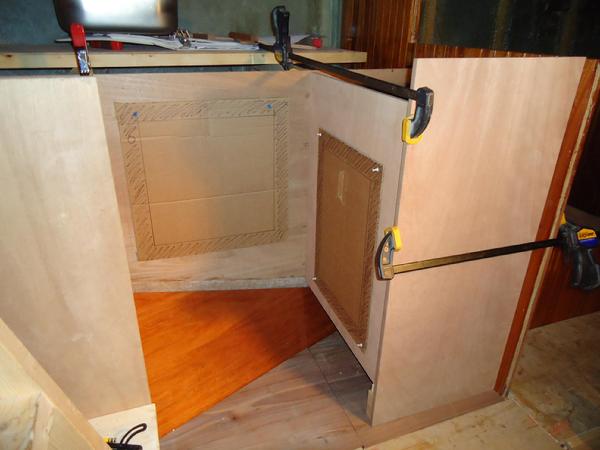

Today, I focused on the galley sink cabinet. It took a ridiculously long time to come up with the right plan. After sorting out exactly where the plywood will be positioned (I will epoxy mahogany staving to the plywood) I cut the panels from some left over 1/2" okume 1088 ply. I clamped them in place and made up some simple cardboard templates for possible cabinet doors. The larger of the two doors is intended to slide back between the stove and the counter cabinet. The cabinet door on the sink cabinet will be hinged. Once the galley is sorted out, the panels are cut, and the cleats and panels are installed, I'll be ready to install the last of the staving. I thought I would be able to use my old "Gusher" foot pump for fresh water but I don't think is enough room. I'd like the toe kick to be at least three inches deep.
.jpg)
I clamped the parts together to see how they fit. The toe kick will extend through the fore and aft vertical panel.
28 Dec 11This morning I finished the work on the walnut plank for the galley sole (I added two pictures to the gallery below). After I removed the clamps, I used a wood scraper to clean up small amount of excess glue on the bottom side of the planks. I used both a skill saw and jig saw to cut out the pattern that I traced onto the walnut from the old template. I cut the 25 degree bevel by sanding the walnut up on one edge and running it down the right side of the fence (I moved the fence to the left side of the blade). A feather board helped keep it steady. I used hand planes and spoke shave to clean up a few small places. My skills with planes and chisels remain very modest but I am getter better and more confident all the time. While trimming with the jig saw my blade wandered a little which really agitated me. It won't be visible as it will be under a cleat screwed to the bulkhead on the forward side of the sink cabinet. I was guiding the jig saw with a clamp down guide bar and I must of not had even pressure--jig saw blades are thin and flexible and can get squirrelly if you are not paying attention to what you are doing. I would have done better if I free handed it then cleaned up the edge with hand planes.
The walnut is very hard . . . and it's heavy. It will definitely add some weight to the boat. Probably not a bad thing since I removed about 1000 lbs of engine and fuel tank. The weight is low so it should make the boat a wee bit stiffer. It's probably not much but nonetheless it will not detract from stability. I could have milled it to 3/4" and saved a little weight, but I figure I am building the boat to last. If the walnut works out, at some point it will need to be resurfaced. the planks can be removed and run thorough a planer or cleaned up with a belt sander. They would look as good as new. The extra 1/8" provides for future maintenance.
The walnut is very hard . . . and it's heavy. It will definitely add some weight to the boat. Probably not a bad thing since I removed about 1000 lbs of engine and fuel tank. The weight is low so it should make the boat a wee bit stiffer. It's probably not much but nonetheless it will not detract from stability. I could have milled it to 3/4" and saved a little weight, but I figure I am building the boat to last. If the walnut works out, at some point it will need to be resurfaced. the planks can be removed and run thorough a planer or cleaned up with a belt sander. They would look as good as new. The extra 1/8" provides for future maintenance.

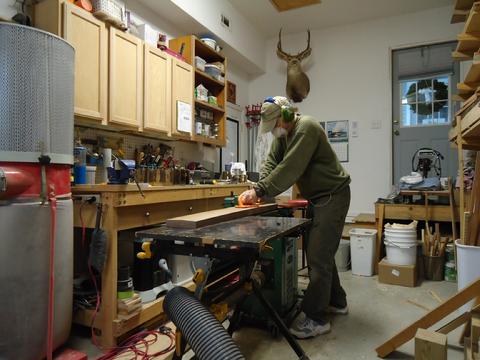

27 Dec 11For the last two days I have been working on the galley cabin sole. The sole has to be addressed before I can built the sink cabinet base. I have to build the cabinet base before I can install the last of the mahogany staving. The walnut sole has to be laid underneath the cabinet base, though the rest of the cabin sole will remain the temporary plywood till near the end of the rebuild. The galley sole is tricky. It has a very shallow angle cut on one side to match the slope of the hull. In the photo to the right you can see the mahogany plywood laid over what would be the exposed fiberglass hull that rises up above the level sole and to which the vertical face of the lower cabinets are glassed. I left extra room around the seacock so there is no chance the seacock will sweat onto the ply. Also, the right 1/4 of the plywood will be under the cabinet base. I spent a lot of time developing a plan to cover the exposed hull. After considering various options I decided to use 1/2" plywood glued to the hull with epoxy or 4200. I would prefer to be able to remove it but there is no good way to do it. The ply has to be cut just right for to fit under the sole. Normally it would go above. But, I want to be able to remove all the walnut to oil it, sand it, repair it, whatever. So, any drips of water that land on the sloping ply will run under the edge of the walnut and down to the bilge. The ply will be receive three coats of West Systems epoxy with 207 hardener. Then it will be covered with some kind of UV inhibitor. Maybe a two part polyurethane.
The vertical plywood to the far left is a template for the stove. The right 1/4 of the plyood laying on the hull will be under the sink cabinet.
Once I got the templates to fit it was time to start milling the walnut. I wanted to use teak but at nearly $30 BF it was not in the budget. Walnut is not normally used but it has a reputation for being very stable and somewhat rot resistant. It was also inexpensive at $5 BF. I had it cut last year to 5/4. We stacked and let it air dry for five months then we loaded it into a local kiln. It should look nice just oiled. And, it will provide good nonskid on bare feet vice the normally varnished cabin sole. Today, I only milled what I needed for the galley sole. After milling was complete I cut slot for "biscuits" and glued up the wood. I briefly considered using epoxy but it is just two messy for something like this. Also, I will not be varnishing the walnut and the excess squeeze out is difficult to clean up since it won't be able to "blend-in" under varnish. I used Titebond III.
22 Dec 11I spent the majority of the day milling about 25 board feet of what I hope is the last batch of staving. It took about five hours to joint one edge, plane, rip, resaw, cut half-laps, and router the V-grooves. The weather was warm and filled with sunshine. It was pleasant to have the doors open and feel the soft breeze blowing through the shop. We are slowly winding down for Christmas though I will get a little more work done in the next day or so. For more information on the technique used to mill the staving click here.
This is the set up I use to cut the half laps.
I have been corresponding with Yves Gelinas, the designer and builder of the Cape Horn windvane. He was pleased with the way we installed the windvane but suggested we eliminate one of the 90 degree bends in the control lines between the steering quadrant and the cam-cleats. He said by eliminating that one bend that it will be easier to pull the slack from the lines when we engage the steering system. The pictures to the right are the before and after. I'll remove the extra fair-leads in the next couple of days.
The "after" picture makes it look like the lines are running right from the quadrant behind me but they are angled in from the outside longitudinal bulkheads to these two center fair-leads.
The "before" picture. Yves Gelinas suggested we not use the outside fair-leads for the control lines.
21 Dec 11The installation of the Cape Horn Integrated Self-Steering System Windvane is complete. I drilled the holes in the front vertical face of the cockpit foot well for the control lines and Harken #150 Cam-Cleats last night. Then, I bedded the cam-cleats in Life Caulk. This morning I trimmed the excess bedding compound and installed the control lines. I used one continuous line which is not the way it will remain--each line will have a figure eight or stopper knot in the end. After playing with the system a little I have decided I need to replace the 1/4" stay-set with spectra or vectran cored line, or something similar, that has minimal stretch. I don't want to cut a line I can use for something else so I just installed the stay-set as one continious line. The control line run length is about 17' per side for which the line needs to be about 19' long. I have never sailed with this system but it seems to me this is a pretty long run of line to remain maximally sensitive in light air. With all the blocks (5 per side) and turns there is a greater chance for line stretch and block sag. The course adjustment line still needs to be rigged--very simple--but I will not rig it until the boat is completed. It's a very small diameter line that runs from the quadrant to whereever you want and allows one to make adjustments to the angle of the windvane blade. Adjusting the line will change the course of the boat. Other than installing the course adjusting line, it's good to go. Once I build storage shelves in the lazerette and cockpit lockers I will paint the the lockers and the space under the cockpit sole. For now, I am declaring victory. "So it is said, so it is written, so it is done."
I temporarily installed the tiller to see how the system worked.
I am not 100 percent confident that running the long line with all the blocks is the right answer for the Far Reach. With a tiller I could run the control lines from the quadrant in the lazerette to the first turning block, make a near 90 degree turn, exit out through the 6" high vertical face at the back of the cockpit, run the line along the coaming to another block, and then to the tiller 16" forward of the rudder post axis. The line would be 7-8' long and require only two blocks per side. It would not take up that much of the cockpit. But Yves Gelinas, for whom I have much respect, thinks this is the right way to go. As I mentioned before, there are several advantages to routing the lines in this manner and steering the boat through the original quadrant. First, the original quadrant is bolted onto the rudder post between the rudder post stuffing box and the upper pillow block. This is where the rudder post has the most support and where steering torque will be best mitigated. Second, steering the boat this way eliminates pressure on the tiller head and the coupling that connects the rudder post extension to the rudder post (though I think it is very strong). The extension was necessary to convert the Far Reach from wheel to tiller steering. Third, if for some reason the tiller, the tiller head, or the coupling should fail the Far Reach can be steered through the Cape Horn windvane and its linkage to the original quadrant. Last, by having the control lines terminate near the top edge of the forward face of the cockpit footwell, (and along with the course adjusting line), the Cape Horn vane can be controlled from the companionway vice from the cockpit.
Will it be sensitive enough to steer the boat in light air when rigged in this manner? Yves seems to think so and that was good enough for me to give it a try. If, however, it is not then I can modify it easily enough and connect it to the tiller.
20 Dec 11I have continued to work on the Far Reach every day. My focus over the last few days has been installing the control lines and the supporting blocks and cam-cleats for the Cape Horn windvane. I finished it up tonight with the calking of the cam-cleats. I'll post photos of the complete installation in the next few days.
While also working on the windvane I built and installed the frames for the deck hatches. These frame will not be visible. They span the gap between the open edge of the overhead panels and the fiberglass ovehead around the hatches . They also provide a surface for the vertical and horizontal finish trim to screw into. Though a precise fit was not required it still required tedious time consuming work.
While also working on the windvane I built and installed the frames for the deck hatches. These frame will not be visible. They span the gap between the open edge of the overhead panels and the fiberglass ovehead around the hatches . They also provide a surface for the vertical and horizontal finish trim to screw into. Though a precise fit was not required it still required tedious time consuming work.
I built mock ups with cheap 2x4 white pine to serve as a template for the final product. Once I was satisfied with the mock-ups, I milled some 2x6 Douglas Fir to 1" thick. Then I ripped it to 2 1/2" wide on the table saw and cut them to length on the chop saw. I scribed the curves from the mock-ups and used my jig saw to cut the curve which also had to be cut at an angle to match the camber of the deck. I made sure they were square and glued them up, clamped them, and left them on my work table over night. The next day, I dropped the overhead panels around the hatches and installed the frames with thickened epoxy. I clamped them in place and let them cure overnight. Next day, I removed the clamps and reinstalled the panels.
13 Dec 11The blocks that I need to complete the Cape Horn windvane installation are on back order. Thus, I spent yesterday developing the plan for the quarter berth. I thought a long time ago I would just raise it. Later, I thought I would create two staggered sea berths--one higher and further outboard than the other. When the kid's are old enough to stand their own watch Gayle and I would each have a comfortable sea-berth. I looked through various books for ideas and reviewed some old sketches I made. But after measuring and drawing various options yesterday I realized it would not work well as there just is not enough space for two comfortable berths. The lower one would be cramped and the upper one would be too difficult to get in and out of without some kind of advanced gymnastics move.
After much thought, I decided it would be best to build one good sea berth. About, 23" wide at the shoulder and around 16-18" at the foot. The top will be about 12-15" higher than the original berth and positioned outboard against the hull. Inboard of the berth, between the nav station and the ladder, will be a 'thwart-ship watch seat. There will be storage under the berth and some between the berth and the longitudinal bulkhead that separates the quarter berth area from the ex-engine compartment. I might be able to fit a place to hang wet foul weather gear so we don't have to drag it through the boat.
I started off by attaching some temporary horizontal cleats. Then I erected strong-backs and small vertical cleats to help keep the lower dividers plumb and level when I glassed them in place. Next, I made templates with door skin plywood and a hot glue gun. I removed the templates and traced them on some 1/2" 1088 okume plywood. I checked the fit then removed an additional 3/8" off the bottom to accommodate the closed cell foam wedge. When I was satisfied everything fit properly, I sanded the hull with 40 grit abrasive as well as a 2" wide strip on both sides of the dividers. I vacuumed and performed a thorough acetone wash down. Next, I applied a couple of coats of epoxy to the end grain of the plywood and let it get very tacky. Then I clamped the dividers into place and wet out the hull and the dividers with unthickend epoxy. I wet out the tape and applied a 4" wide strip of 17.08 biaxial to each side. After that I cleaned up the boat and the shop. Later when the epoxy tape was green I trimmed the excess with a razor knife.
After much thought, I decided it would be best to build one good sea berth. About, 23" wide at the shoulder and around 16-18" at the foot. The top will be about 12-15" higher than the original berth and positioned outboard against the hull. Inboard of the berth, between the nav station and the ladder, will be a 'thwart-ship watch seat. There will be storage under the berth and some between the berth and the longitudinal bulkhead that separates the quarter berth area from the ex-engine compartment. I might be able to fit a place to hang wet foul weather gear so we don't have to drag it through the boat.
I started off by attaching some temporary horizontal cleats. Then I erected strong-backs and small vertical cleats to help keep the lower dividers plumb and level when I glassed them in place. Next, I made templates with door skin plywood and a hot glue gun. I removed the templates and traced them on some 1/2" 1088 okume plywood. I checked the fit then removed an additional 3/8" off the bottom to accommodate the closed cell foam wedge. When I was satisfied everything fit properly, I sanded the hull with 40 grit abrasive as well as a 2" wide strip on both sides of the dividers. I vacuumed and performed a thorough acetone wash down. Next, I applied a couple of coats of epoxy to the end grain of the plywood and let it get very tacky. Then I clamped the dividers into place and wet out the hull and the dividers with unthickend epoxy. I wet out the tape and applied a 4" wide strip of 17.08 biaxial to each side. After that I cleaned up the boat and the shop. Later when the epoxy tape was green I trimmed the excess with a razor knife.
.jpg)
.jpg)
.jpg)
11 Dec 11For the last couple of days I have continued to work on the wind vane installation. All I need to do is run the control lines. There are three things I need to accomplish this: the right kind of blocks, 1/4" line, and most important, a way to attach the blocks to the rudder post steering quadrant.
I found the blocks I needed--Harken #001 swivel bullet blocks with a 2 .25 diameter sheave. As hard as it is to believe, of all the places I looked, the best price, by far, is West Marine. They gave me a bunch of discounts. They had two in stock so I purchased them and ordered the rest. I chose bullet blocks because they have very little friction which will help to keep the vane sensitive in light air.
I found the blocks I needed--Harken #001 swivel bullet blocks with a 2 .25 diameter sheave. As hard as it is to believe, of all the places I looked, the best price, by far, is West Marine. They gave me a bunch of discounts. They had two in stock so I purchased them and ordered the rest. I chose bullet blocks because they have very little friction which will help to keep the vane sensitive in light air.
The loop in the line would be run through a block attached to a block bolted to the center of the bronze plate.
The blocks get connected to eye straps that are then secured to plywood pads that are glassed to the underside of the deck or wherever they need to be to provide the best run for the control line. I rigged up the two blocks I have. The first block that turns the line when it first comes off the Cape Horn quadrant is critical; the lead has to be perfectly fair. I used a hot glue gun to temporarily fasten one to the underside of the deck in the lazerette. I drilled a hole through the bulkhead that separates the lazerette from the port side cockpit locker space and temporarily fastened the second block. The line ran fair through the hole. After going though the second block the line turns downward and run 'thwartship under the cockpit sole and then proceeds to the quadrant via two more blocks. The final run to the quadrant had to be at 90 degrees to the line between the rudder post and where the blocks are attached to the quadrant. Since I did not have any more Harken blocks I dragged out a couple of oversized Schaefer blocks and used them to get a feel for the remaining run to the quadrant. I tried several methods of attaching eybolts and eye straps to my quadrant but could not maintain a fair lead. When I turned the quadrant it would interfere with the opposite block. It was the wedge shape of the quadrant that caused the problem. I briefly considered buying a bronze auto-pilot straight tiller to fasten the blocks too but I was confident there was a way to use the quadrant I have without throwing money at the problem. I spent some time laying under the cockpit sole just looking at what I had to work with. I must have removed and reinstalled the quadrant at least a half dozen times trying different ideas. It was not frustrating at all . . . it is very interesting work. It's basically an engineering challenge. I finally determined I needed to flip the quadrant over and bolt a plate to it so I could attach the blocks on the underside of the quadrant and get a fair lead to the lateral bulkhead. Keep in mind I am only working on the port side control line until I figure out what will work. The starboard side will get rigged in the same manner. I had a scrap piece of bronze that I cut with my Bosch jigsaw and then bolted it with two 3/8" SS cap head bolts to the quadrant. Since I needed to flip the quadrant upside down I drilled two 3/16" holes near the lowest portion of the inverted quadrant so any water that drips onto the quadrant will run back and out the holes.
On the right side of the picture you can see the temporary piece of scrap pine 2x4, installed vertically, secured with hot glue and the Schaefer blocks that I used to develop the run. I have not drilled a hole in the center of the bronze plate as I need to get the right fitting--a SS eyebolt I think. Two block will be secured to it--one that supports the port side control line and one that support the starboard side control line. I can't really do much more till the rest of the blocks arrive. So, tomorrow I'll go back to work on the interior.
On the right side of the picture you can see the temporary piece of scrap pine 2x4, installed vertically, secured with hot glue and the Schaefer blocks that I used to develop the run. I have not drilled a hole in the center of the bronze plate as I need to get the right fitting--a SS eyebolt I think. Two block will be secured to it--one that supports the port side control line and one that support the starboard side control line. I can't really do much more till the rest of the blocks arrive. So, tomorrow I'll go back to work on the interior.
8 Dec 11 -- Note: I updated the photo gallery for the 7 Dec 11 EntryI began the day crawling around in the aft end of the boat thinking about how I will need to route the control lines. For a long time I thought I would run the control line from the windvane quadrant, in the lazerette, out through holes in aft vertical face of the cockpit (above the seat but below the deck the lazerette hatch sits on), along the cockpit coaming, though a small turning block, and then 'thwartship to the tiller--the standard way of attaching a self-steering vane to a tiller steered boat. But when I discussed this with Yves Gelinas, the designer and builder of the Cape Horn Vane he really pressed me to run the lines below the deck and hook it up to the old wheel steering quadrant. His argument is it would free the cockpit of the control lines and put steering pressure low down on the rudder post. Yves is an interesting fellow. He circumnavigated in 1983 with one stop, via the three great capes, on a very similar boat, the Alberg 30. He also did it with the prototype of the gear he now sells, so he knows how the vane's characteristics from personal experience, as well as the enormous strains put on a boat offshore. He also has a very pragmatic "keep it simple" philosophy. I have concerns about the control line running below the deck where I can't see it easily. On the other hand, converting the boat from wheel to tiller steering required me to add an 8-9" long extension to the top of my rudder post secured with a special coupling. So, the idea of the majority of steering pressure being applied low down on the rudder post via the original bronze quadrant appeals to me. Therefore, I'll give Yves' recommendation a try. If I don't like it, I will change it. Tomorrow I'll start making modifications to the steering quadrant, which I fortunately kept, so I can attach the blocks for the control lines.
Note: I mentioned that I think Yves is very clever. In one of the pictures of the Cape Horn steering quadrant I added to the 7 Dec 11 photo gallery, there is a little rod you can see that fits in a special slot in the front of the HMT. It's only purpose is to allow a very small tiller pilot to link to the steering gear. This unique design feature allows what would normally be a low power (and low power draw) tiller pilot to steer a large boat because the tiller pilot taps into the self steering gear mechanical system to provide leverage via the steering oar. Yves points out that because the tiller pilot does not have to work very hard and because it will be in the lazerette and out of the weather it will last longer. The rod can be removed in a couple of seconds.
Note: I mentioned that I think Yves is very clever. In one of the pictures of the Cape Horn steering quadrant I added to the 7 Dec 11 photo gallery, there is a little rod you can see that fits in a special slot in the front of the HMT. It's only purpose is to allow a very small tiller pilot to link to the steering gear. This unique design feature allows what would normally be a low power (and low power draw) tiller pilot to steer a large boat because the tiller pilot taps into the self steering gear mechanical system to provide leverage via the steering oar. Yves points out that because the tiller pilot does not have to work very hard and because it will be in the lazerette and out of the weather it will last longer. The rod can be removed in a couple of seconds.
As I was crawling around in the boat developing the plan for the self-steering windvane control lines I remembered that I needed to replace the rubber hose that supports the rudder post stuffing box. It required me to remove the self aligning bearing (I have heard it called a pillow block) that supports the upper end of the rudder post just below the coupling that attaches the short extension to the rudder post. The bearing is bolted to a 'thwartship steel beam that is in turn bolted to the longitudinal bulkheads on either side of the crawl space under the cockpit sole. By removing two of the four bolts that hold the beam in place I was able to swing it away from the rudder post and slide the locking collar off the top of the rudder post. I unscrewed the top of the stuffing box but I could not pull the lower half out of the rubber hose which was also stuck to the fiberglass rudder port. So, I used a box cutter to slice the hose open lengthwise (there is no wire reinforcement) and peeled if off. Then, I slid the stuffing box up off the end of the rudder post. That ended boat work for the day while I traveled north to Morehead City to buy stuff box hose and some bullet block for the vane gear control lines.
One of the great things about rebuilding your boat is you get to know every part. I think it also increases the odds that you will be able to make repairs more easily in the future. I will be comforted by the fact that I have replaced this part but if, for some reason there is a problem with it in the future and the circumstances are more difficult, I will already be familiar with what's required.
7 Dec 11The weather was fantastic today--a wonderfully warm and sunny 75 degrees. It was very pleasant to be working outside. Today, I finished installing the Cape Horn Self-Steering Windvane. I started off the day's work by making a mock up of the windvane tower external support tubes with some scrap PVC pipe. I didn't want the support tubes to dominate the stern of the boat--too many SS tubes. Anyway, I kept the angles about 45 degrees and worked around the backing plate under the backstay chainplate. Since I need room for our ancient walker log, perhaps a water generator (someday), maybe a sculling oar, or an outboard I need to keep the aft deck open till I have a better feel for what our needs will be . . . and they will probably change over time. I still need to rig the control lines this week and the course adjustment line (that will be rigged much later).
The most interesting event today was installing the brackets on the tower tube. The task was to get the tapped backing plates inside the tube, lined up with the holes I drilled, and the bolts on the fittings threaded into the tapped backing plate. Yves Gelinas, the designer and builder of the Cape Horn Windvane, and a very clever fellow, described how to do it in the instruction book. I admit I was a little skeptical but it worked like a champ. Take a look at the pictures below to see the technique. It's a technique worth keeping in one's bag of tricks.
The windvane is up, it looks good, and it seems to be very secure. It is nice to see the boat looking different. Tomorrow, I'll start working on rigging the control lines. I'll need to pick up some small bullet blocks, make some backing pads and take a closer look how/where to run the lines.
I'll replace the night time photos of the vane in the gallery below tomorrow with some day time shots.
The most interesting event today was installing the brackets on the tower tube. The task was to get the tapped backing plates inside the tube, lined up with the holes I drilled, and the bolts on the fittings threaded into the tapped backing plate. Yves Gelinas, the designer and builder of the Cape Horn Windvane, and a very clever fellow, described how to do it in the instruction book. I admit I was a little skeptical but it worked like a champ. Take a look at the pictures below to see the technique. It's a technique worth keeping in one's bag of tricks.
The windvane is up, it looks good, and it seems to be very secure. It is nice to see the boat looking different. Tomorrow, I'll start working on rigging the control lines. I'll need to pick up some small bullet blocks, make some backing pads and take a closer look how/where to run the lines.
I'll replace the night time photos of the vane in the gallery below tomorrow with some day time shots.
6 Dec 11Today I completed the epoxy work for the Cape Horn Windvane. But first, a quick look down the horizontal mounting tube (HMT)--see the first picture below. Inside you can see how the little backing plates are recessed (I described them in the previous post). The Teflon bushings on both ends of the HMT provide "stand-off" for the control axis tube that rides on the smaller diameter bushings. The HMT is glassed into the boat and then further supported with the two support tubes that I cut to length yesterday.
So how does the windvane work? The windvane blade is set by the skipper so one edge is directly into the winds. The vane is push over (tilted) left or right as it responds to changes in the relative angle of the wind as the boat sails along. The vane blade is linked to the steering oar via a special connecting rod. A change in the windvane causes the steering oar to turn (left or right) and the water pressure then pushes on the steering oar (with great power) literally swinging the whole oar blade. The swinging of the steering oar (levering is probably a better word) causes the control axis to rotate inside the HMT, riding on those Teflon bushings. That rotation of the control axis is transmitted to the quadrant (bolted to the forward end of the control axis) you can see in the last picture. As the quadrant rotates it pulls on the control lines (they are not rigged in the photo below) that lead, via a series of small blocks, to either the tiller, wheel, or the boat's steering quadrant (if it has one) (three options) as you desire. It's all about the Cape Horn quadrant pulling on the control lines. That is essentially how the vane steers the boat.
Last, night I sanded the HMT on the outside in the area that will be glassed to the inside of the hole in the transom. Sanding the SS tube gives the epoxy something to grab onto so it won't slip. I also sanded the bottom of the plywood pads and the beveled sides with 40 grit abrasive paper. This morning, I started off by test fitting the whole lash up one more time. Next, I performed another acetone wash down of the area that will receive epoxy. Next, I cut some 17.08 biaxial to fit over the plywood pads that will be glassed to the inside of the lazerette. Then, I wetted out the bottoms of the pads and the area against the hull they will contact with. I let it cure till it was tacky. Next, I mixed up a batch of West Epoxy that I thickened with a small amount of 404 filler and the rest was 406 colloidal silica. I trowled it on to the bottom of the pad to create a small wedge to better angle the bad towards the HMT. I smoothed fillets around the pads and too the left over epoxy to make a fillet around the HMT on the inside of the hull where it passes through the transom.
I let all this cure till it was firm but not hard. Then, I removed the bolts from the pad end of the support tube and folded the tubes out of the way. Next, I wet out the biaxial, placed it over the pads, around the HMT, and smoothed it all out. I spent the rest of the afternoon reading through the directions for mounting the control tower and rigging the control lines.
So how does the windvane work? The windvane blade is set by the skipper so one edge is directly into the winds. The vane is push over (tilted) left or right as it responds to changes in the relative angle of the wind as the boat sails along. The vane blade is linked to the steering oar via a special connecting rod. A change in the windvane causes the steering oar to turn (left or right) and the water pressure then pushes on the steering oar (with great power) literally swinging the whole oar blade. The swinging of the steering oar (levering is probably a better word) causes the control axis to rotate inside the HMT, riding on those Teflon bushings. That rotation of the control axis is transmitted to the quadrant (bolted to the forward end of the control axis) you can see in the last picture. As the quadrant rotates it pulls on the control lines (they are not rigged in the photo below) that lead, via a series of small blocks, to either the tiller, wheel, or the boat's steering quadrant (if it has one) (three options) as you desire. It's all about the Cape Horn quadrant pulling on the control lines. That is essentially how the vane steers the boat.
Last, night I sanded the HMT on the outside in the area that will be glassed to the inside of the hole in the transom. Sanding the SS tube gives the epoxy something to grab onto so it won't slip. I also sanded the bottom of the plywood pads and the beveled sides with 40 grit abrasive paper. This morning, I started off by test fitting the whole lash up one more time. Next, I performed another acetone wash down of the area that will receive epoxy. Next, I cut some 17.08 biaxial to fit over the plywood pads that will be glassed to the inside of the lazerette. Then, I wetted out the bottoms of the pads and the area against the hull they will contact with. I let it cure till it was tacky. Next, I mixed up a batch of West Epoxy that I thickened with a small amount of 404 filler and the rest was 406 colloidal silica. I trowled it on to the bottom of the pad to create a small wedge to better angle the bad towards the HMT. I smoothed fillets around the pads and too the left over epoxy to make a fillet around the HMT on the inside of the hull where it passes through the transom.
I let all this cure till it was firm but not hard. Then, I removed the bolts from the pad end of the support tube and folded the tubes out of the way. Next, I wet out the biaxial, placed it over the pads, around the HMT, and smoothed it all out. I spent the rest of the afternoon reading through the directions for mounting the control tower and rigging the control lines.
5 Dec 11I spent today measuring, cutting and assembling the two support tubes for the horizontal mounting tube (HMT). Much to my disappointment the best place for the support pads was right on top of an old wire run for the lighting ground wire from the backstay chain plate. There was no way around it . . . so I broke out the grinders, suited up and ground down the glass over the wire and removed about a 1' section of wire (I wasn't going to use this wire anyway. Then I vacuumed up the mess. This cost me about 90 minutes.
Next, I made a simple jig for holding round stock when drilling. I took a scrap piece of 2x4 about 14" long and cut 2 opposing 45 degree bevels in it with the bevels joining down the centerline. This created a 1" deep 90 degree angled "trough" that will hold various sized round stock steady for drilling.
Then, I used the measurements for the support tubes from the mock ups I made yesterday. I cut the 7/8" OD SS tubes about 5" long with a hack saw. I used a sharpie to mark on the HMT where the swivel brackets would be located (each swivel is held on with two 1/4" bolts. These holes only go through one side of the tube. Cape Horn supplies a little custom curved and pre-tapped backing plate that fits on the inside of the HMT. I marked the location on the HMT for the two holes for each of the swivel brackets with a center punch. I could not get the jig to fit under my small drill press and have room for the drill bit to clear the 2 1/2" diameter HMT. So, I just set the jig on the floor and cut the 5/16" holes with a hand drill (these holes are cut slightly oversized to provide some wiggle room for fitting) . The jig made it pretty easy. Next, I needed to drill a 1/4" hole for the bolt that would hold one end of the tube to the "U" bracket (I installed the "U" brackets to 4'x4" plywood pads yesterday--see the previous entry for pictures of the pads and "U" brackets). This hole goes all the way through the tube so I used the drill press for the small tube, since it would fit under the drill press, and because this hole needed to be drilled at 90 degrees through both sides. Next, I assembled all the parts and test fit them in the boat. It all looked pretty good. I was running out of time and did not want to get in a hurry epoxying the HMT and the pads in position so I spent the remaining time cutting out biaxial cloth for the pads and a small strip for the HMT. I also spent some time beveling the inside and outside edge of the 2 1/2" hole in the transom. This should allow a better epoxy filet on the inside and a bedding compound caulking grove on the outside. I vigorously sanded the inside of the lazerette where the pads will be secured with 40 grit paper, vacuumed up the residue, and did a thorough acetone wipe down.
Next, I made a simple jig for holding round stock when drilling. I took a scrap piece of 2x4 about 14" long and cut 2 opposing 45 degree bevels in it with the bevels joining down the centerline. This created a 1" deep 90 degree angled "trough" that will hold various sized round stock steady for drilling.
Then, I used the measurements for the support tubes from the mock ups I made yesterday. I cut the 7/8" OD SS tubes about 5" long with a hack saw. I used a sharpie to mark on the HMT where the swivel brackets would be located (each swivel is held on with two 1/4" bolts. These holes only go through one side of the tube. Cape Horn supplies a little custom curved and pre-tapped backing plate that fits on the inside of the HMT. I marked the location on the HMT for the two holes for each of the swivel brackets with a center punch. I could not get the jig to fit under my small drill press and have room for the drill bit to clear the 2 1/2" diameter HMT. So, I just set the jig on the floor and cut the 5/16" holes with a hand drill (these holes are cut slightly oversized to provide some wiggle room for fitting) . The jig made it pretty easy. Next, I needed to drill a 1/4" hole for the bolt that would hold one end of the tube to the "U" bracket (I installed the "U" brackets to 4'x4" plywood pads yesterday--see the previous entry for pictures of the pads and "U" brackets). This hole goes all the way through the tube so I used the drill press for the small tube, since it would fit under the drill press, and because this hole needed to be drilled at 90 degrees through both sides. Next, I assembled all the parts and test fit them in the boat. It all looked pretty good. I was running out of time and did not want to get in a hurry epoxying the HMT and the pads in position so I spent the remaining time cutting out biaxial cloth for the pads and a small strip for the HMT. I also spent some time beveling the inside and outside edge of the 2 1/2" hole in the transom. This should allow a better epoxy filet on the inside and a bedding compound caulking grove on the outside. I vigorously sanded the inside of the lazerette where the pads will be secured with 40 grit paper, vacuumed up the residue, and did a thorough acetone wipe down.
4 Dec 11To the right are a couple more pictures of the overhead v-groove panels after I installed the last two in the head compartment. I am very pleased with how the panels turned out. If you know what you are looking for you can see a little end grain tear out here and there in the v-grooves. But if you weren't looking for it I don't think you would see it. The white overhead really brightens up the interior. Plus, I was sick of looking at the unfinished fiberglass for the last 2 1/2 years.
Looking forward from the saloon to the head compartment. To the right is the flue for the Refleks heater. It will eventually pass throught he overhead.
After installing the overhead panels I thought about what should be the next project. There are so many! . . . . . but most of the ones I could do now will take some time to complete. So, I thought I ought to reward myself with something I can more or less complete in short order after the long effort to complete the overhead panels. Therefore, it seemed like a good time to install the Cape Horn Windvane. I have had the box sitting on the shelf for at least 18 months. It will only take a few days to install the vane. I need to install it to figure out how many blocks I will need for the control lines. Also, once the vane is installed, and the control lines are routed properly, I can then install shelves in the lazerette as well as make additional storage mods under the cockpit sole. In other words, it's probably a good time to install the vane anyway. So, I dug up the measurements I made when I ordered the vane as each vane is custom made for each boat. I spent some time confirming the measurements. I read through the instructions a couple of times.
When I was ready, I started off by marking the center of the transom, vertically and horizontally, with a pencil mark. Then I drilled a small 1/4" pilot hole. I taped over the surrounding area to protect the edges and reduce the likelihood of damage to the Awlgrip paint when I drilled the required 2 1/2" hole with a hole saw. I would be lying if I said I was not a little anxious about drilling this hole. I spent some time making sure the drill bit was level by calibrating the drill with a bronze rod and a torpedo level. Once I was satisfied I knew what level was I installed the hole saw and made the cut. No sweat. The tube fit perfectly level.
Next, I inserted the horizontal mounting tube (HMT). It gets bolted in place with two 1" diameter SS support rods. The rods connect to the HMT on the inside of the lazerette and then to 4"x4"x3/4" beveled plywood pads that are glassed to the inside of boat. Then, to provide more strength, the HMT itself gets glassed to the inside of the transom as well. So, it is important to get the depth of the HMT just right as it become permanent to the boat. To determine the depth, I used a 1/4" line to hold the HMT level (see pictures below) and temporarily installed the control axis (lower part of the vane) which contains the toggle rod and to which the steering oar is also attached. The control axis is inserted through the HMT. The steering quadrant is attached to the forward end of the control axis that protrudes through the forward end of the HMT--a tube inside a tube, if you will. I wanted the vane tower be close to the aft end of the fantail but allow room for the steering oar to rotate up 180 degrees in the stowed position. I also checked that the quadrant, which gets attached to the end of the control axis on the inside of the lazerette, to make sure it will have room to rotate. The quadrant will be in the up position (see the photo below) when the steering oar is down but rotates 180 down when the steering oar is in the stowed, up position. Clear as mud, right? When I get further along and have more pictures it will make more sense.
Once I was satisfied the HMT was in the right position, I marked the tube on the inside with a sharpie. Then, I spent some time cutting the plywood pads that the inside support rods will be secured to. The brackets the tube get bolted two have to be through-bolted to the pads and the flat heads of the machine bolts counter sunk since that side will be glassed to the inside of the hull. I spent about 90 minutes just sitting in the lazerette with the pads, brackets, and some mock up 1" OD PVC pipe determining the best location for the support tubes to be located. I initially thought there would be lots of options regarding where the pads could be glassed to, but not so. The ideal location would have been under the aft deck but the dorades are there. A little closer to the centerline looked great but the lazerette hatch hinges fit there. A little wider and the antenna tuner would be in the way. Finally, I came up with a good location . . . angled down and to the lower side of the transom just aft of the quadrant. By the time I came up with the right location it was time to stop work.
When I was ready, I started off by marking the center of the transom, vertically and horizontally, with a pencil mark. Then I drilled a small 1/4" pilot hole. I taped over the surrounding area to protect the edges and reduce the likelihood of damage to the Awlgrip paint when I drilled the required 2 1/2" hole with a hole saw. I would be lying if I said I was not a little anxious about drilling this hole. I spent some time making sure the drill bit was level by calibrating the drill with a bronze rod and a torpedo level. Once I was satisfied I knew what level was I installed the hole saw and made the cut. No sweat. The tube fit perfectly level.
Next, I inserted the horizontal mounting tube (HMT). It gets bolted in place with two 1" diameter SS support rods. The rods connect to the HMT on the inside of the lazerette and then to 4"x4"x3/4" beveled plywood pads that are glassed to the inside of boat. Then, to provide more strength, the HMT itself gets glassed to the inside of the transom as well. So, it is important to get the depth of the HMT just right as it become permanent to the boat. To determine the depth, I used a 1/4" line to hold the HMT level (see pictures below) and temporarily installed the control axis (lower part of the vane) which contains the toggle rod and to which the steering oar is also attached. The control axis is inserted through the HMT. The steering quadrant is attached to the forward end of the control axis that protrudes through the forward end of the HMT--a tube inside a tube, if you will. I wanted the vane tower be close to the aft end of the fantail but allow room for the steering oar to rotate up 180 degrees in the stowed position. I also checked that the quadrant, which gets attached to the end of the control axis on the inside of the lazerette, to make sure it will have room to rotate. The quadrant will be in the up position (see the photo below) when the steering oar is down but rotates 180 down when the steering oar is in the stowed, up position. Clear as mud, right? When I get further along and have more pictures it will make more sense.
Once I was satisfied the HMT was in the right position, I marked the tube on the inside with a sharpie. Then, I spent some time cutting the plywood pads that the inside support rods will be secured to. The brackets the tube get bolted two have to be through-bolted to the pads and the flat heads of the machine bolts counter sunk since that side will be glassed to the inside of the hull. I spent about 90 minutes just sitting in the lazerette with the pads, brackets, and some mock up 1" OD PVC pipe determining the best location for the support tubes to be located. I initially thought there would be lots of options regarding where the pads could be glassed to, but not so. The ideal location would have been under the aft deck but the dorades are there. A little closer to the centerline looked great but the lazerette hatch hinges fit there. A little wider and the antenna tuner would be in the way. Finally, I came up with a good location . . . angled down and to the lower side of the transom just aft of the quadrant. By the time I came up with the right location it was time to stop work.
A couple of days ago I finished up the cockpit locker hatch frames. For the starboard Iroko frame I installed plugs over the countersunk screws. I then used a router with a 1/4" round-over bit to radius the top horizontal edges and their associated inside corners. I also radiused the outside vertical edges to give it a much smoother more refined look. Then, I used a 2 1/2" hole saw to create a large drain hole in the frame for the small sub compartment at the forward end of the locker. Lastly, I installed teak wood plugs in the ordinal teak portside locker hatch frame.
This picture shows the dado joint and 1/4" round over of the top edge of the locker frame.
I am pleased with how the locker frame turned out.
3 Dec 11This morning I installed all but two of the overhead v-groove panels. I am very pleased with how they came out. I could not install two panels as I failed to cover the wood cleats that surround the opening for the dorades with epoxy. So, I installed all the other panels and coated the wood with a couple of coats of epoxy. Tomorrow, I'll install the remaining two panels.
The panels fit together down the centerline very nicely except for about 24" forward of the saloon deck hatch. Not sure why. It is a very small gap. I can't really do anything about it so I will get covered with mahogany trim and will blend in just fine with the deck beams and hatch trim. Many thanks to Kaj Jakobsen for taking an interest in our rebuild and for taking the time to provide a detailed explaination on how to make them.
The panels fit together down the centerline very nicely except for about 24" forward of the saloon deck hatch. Not sure why. It is a very small gap. I can't really do anything about it so I will get covered with mahogany trim and will blend in just fine with the deck beams and hatch trim. Many thanks to Kaj Jakobsen for taking an interest in our rebuild and for taking the time to provide a detailed explaination on how to make them.
3 Dec 11We took few days off over Thanksgiving to travel and link up with all my brother and sisters. We had a fine time. Other than that, work has continued even though I have not made a post in a while. Last week, I rolled and tipped three coats of Interlux Pre-Kote primer to the overhead v-groove panels. I sanded between coats with 220. After the last coat of primer I sanded with 320. Next, I rolled and tipped two coats of Interlux Brightside sanding in between with 320. I am pleased with how they came out. Because the temperatures dropped, I had to move the painting into the guest room over the garage where we could control the temperatures. I spread drop cloths, set up the portable work bench to paint off of, and laid down some 2x4 supports so the panels would be off the floor. After the painting the last coat I left them to try for four or five days to cure before we handle them and install them in the boat.
All these brackets will be bolted through the deck with backing plates. The raised bulwark will be through-bolted to the vertical plates.
While I was in Virginia visiting family, I linked up with my best friend Steve. Visit is airplane building site here: http://www.mypiet.com/ He spent his evenings for the last couple of weeks welding up the bronze stanchion bases and support brackets for the bulwark. He has not been welding that long but he can do just about anything. I think they look fantastic. We worked on the design together over the phone and on skype in the early fall. I ordered some bronze from Atlas Metal and had it shipped to Steve's house. I was up there in Sept and we built a single prototype. Once we were satisfied with the design, he went to town cutting out the remaining parts and welding them up. There are 24 brackets: 12 stanchion supports and 12 support brackets. Do I need to mention I owe him big time? He is the Thousandth Man. If you don't know what I am talking about you should look it up. Ninty nine percent of all people will never know a Thousandth Man. If you do, consider yourself very very lucky.
The plan is to mount the stanchion supports about every six feet and in between them mount the support brackets. They are all 5" H X 3 1/2" L X 3" W. They are built out of 1/4" silicon bronze. We designed them so I can drill a hole in the upper horizontal plates at the top of the stanchion tubes and in the gussets of the support bracket and fasten shackles to them for halyards, preventers, etc.
Yesterday I radiused the corners using a template and a 4 1/2" angle grinder. I spent today polishing them up with a polishing compund that looks like a block of soap and a buffing wheel attached to my big grinder and clamped to a portable work bench. I wasn't looking for perfection since we will let them turn green with verdigris just like the rest of the external bronze. The buffing wheels slowly shred apart as you polish so I needed to do it out side. Last time I did this in my shop and it was a mess afterwards.
All these brackets will be bolted through the deck with backing plates. The raised bulwark will be through-bolted to the vertical plates.
The plan is to mount the stanchion supports about every six feet and in between them mount the support brackets. They are all 5" H X 3 1/2" L X 3" W. They are built out of 1/4" silicon bronze. We designed them so I can drill a hole in the upper horizontal plates at the top of the stanchion tubes and in the gussets of the support bracket and fasten shackles to them for halyards, preventers, etc.
Yesterday I radiused the corners using a template and a 4 1/2" angle grinder. I spent today polishing them up with a polishing compund that looks like a block of soap and a buffing wheel attached to my big grinder and clamped to a portable work bench. I wasn't looking for perfection since we will let them turn green with verdigris just like the rest of the external bronze. The buffing wheels slowly shred apart as you polish so I needed to do it out side. Last time I did this in my shop and it was a mess afterwards.
All these brackets will be bolted through the deck with backing plates. The raised bulwark will be through-bolted to the vertical plates.
The buffing wheels start out much bigger but slowly shred as you polish.
